110V 600W Tapping Machine Electric Touch M3-M16 Universal Stepless Speed Change 360° Aluminum Copper A3 Steel 45 Steel, Cast Iron Pig Iron Q235 S136 Dies Steel 718H 40Cr Stainless Steel

Specification Length: 22.4inches Height: 34.4inches Working area: Horizontal: 42.3"(1076mm)；Vertical: 21.6"(545mm) Bearing scope of thread: M3-M16 Chuck type: GT12 Torque: 32N.m Collet: M3, M4, M5, M6-8, M10, M12, M14, M16 Voltage: 110V/60HZ Power: 600W(0.8HP) Speed: 0-312rpm Package Dimensions 32*25*9inches; 73pounds

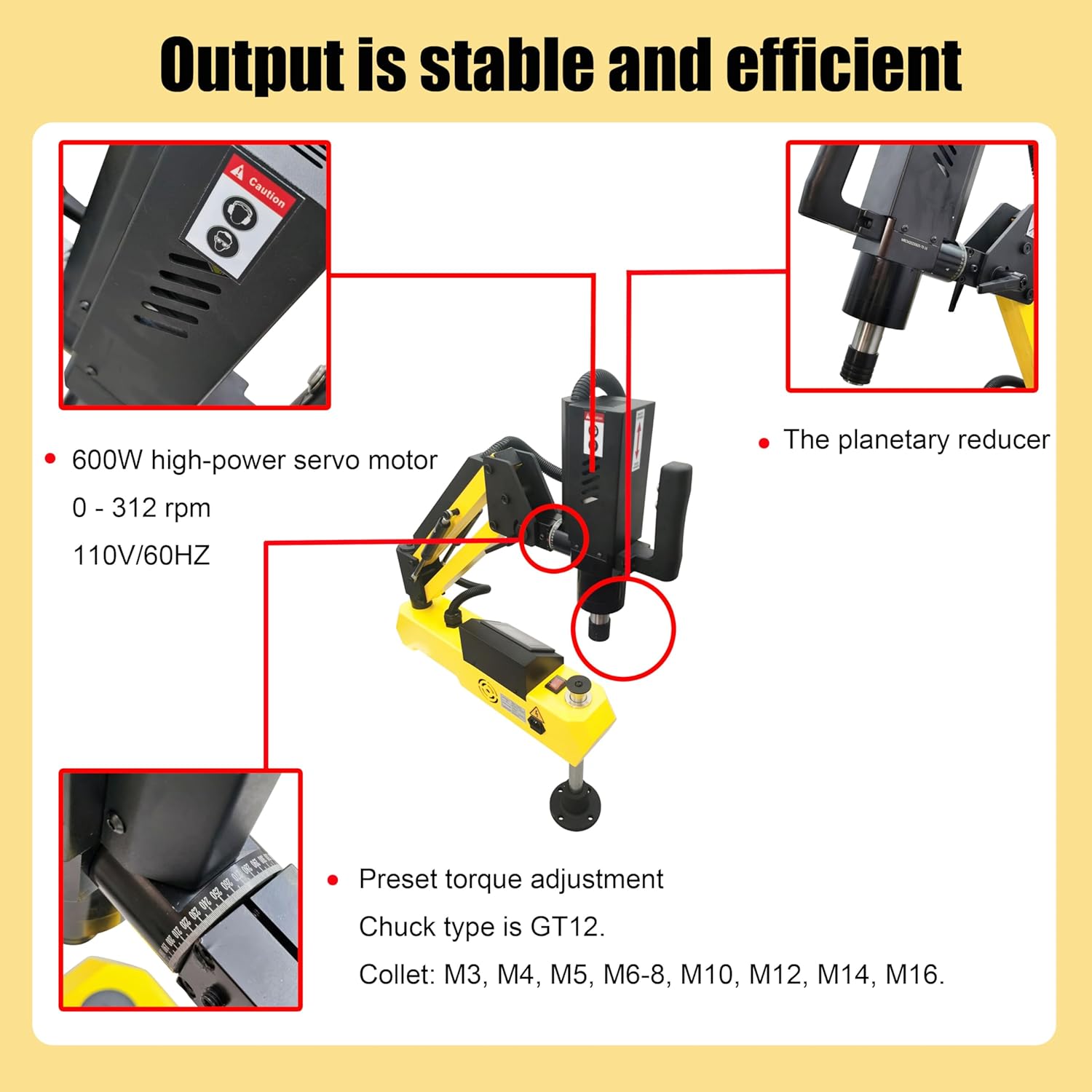

• [Output is stable and efficient] The tapping machine is equipped with a 600W high-power servo motor, with a rotational speed ranging from 0 to 312 rpm. The planetary reducer reduces the motor speed while increasing the torque. Torque is 32N.m. The preset torque of the machine, combined with the dual protection of the torque chuck, can prevent the tap from breaking. Intelligent Torque Protection. Chuck type is GT12. Collet: M3, M4, M5, M6-8, M10, M12, M14, M16.

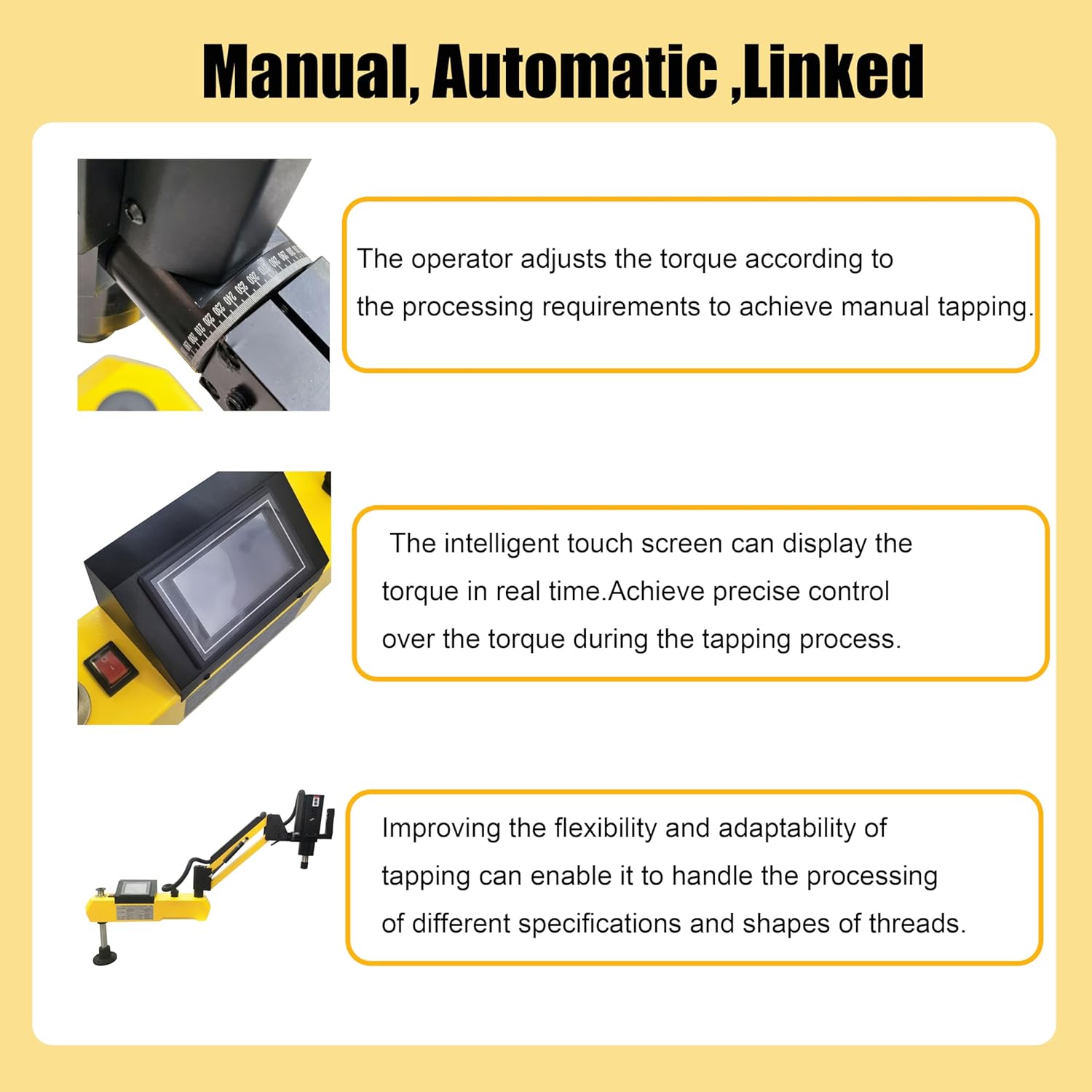

• [Precise operation] The intelligent touch screen can display the torque in real time. Variable-speed transmission allows for continuous adjustment of the spindle speed. The rotational speed can be adjusted according to different materials and thread specifications. Three modes: manual, automatic and linked, are suitable for different working requirements.
• [Humanization Design] The head handle is equipped with forward and reverse buttons. The ventilation holes accelerate the dissipation of heat from the motor and the transmission components. The bottom anti-slip foot pad enhances the stability of the equipment placement.

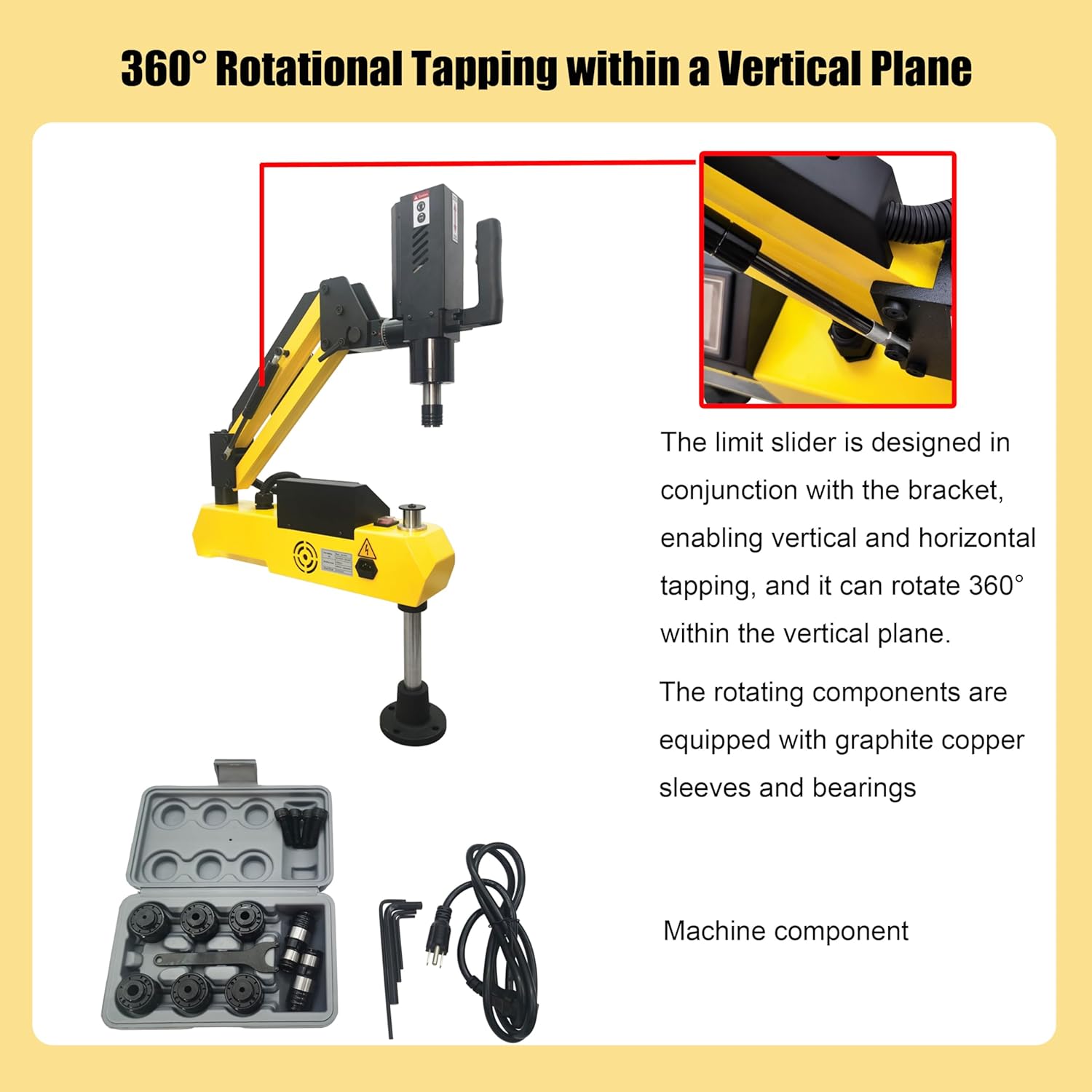

• [360° Rotational Tapping within a Vertical Plane] Bearing scope of thread is M3-M16. Process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, Dies steel, 718H,40Cr, stainless steel and other materials. The limit slider is designed in conjunction with the bracket, enabling vertical and horizontal tapping, and it can rotate 360° within the vertical plane.
• [Sturdy and Durable] The rotating components are equipped with graphite copper sleeves and bearings, ensuring smooth rotation of the main shaft. The support structure is highly rigid and durable, ensuring long-lasting performance.
