NBX-5040 CNC Router Machine with Custom-Made 710W 7000-30000 RPM Trim Router Spindle & ER-11 Collet, Milling Engraving for Wood Acrylic Aluminum
US$559.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by waxandwine.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$559.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by waxandwine.com
Free 30-day returns Details
Product details
| Management number | 218589447 | Release Date | 2026/05/03 | List Price | US$559.60 | Model Number | 218589447 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

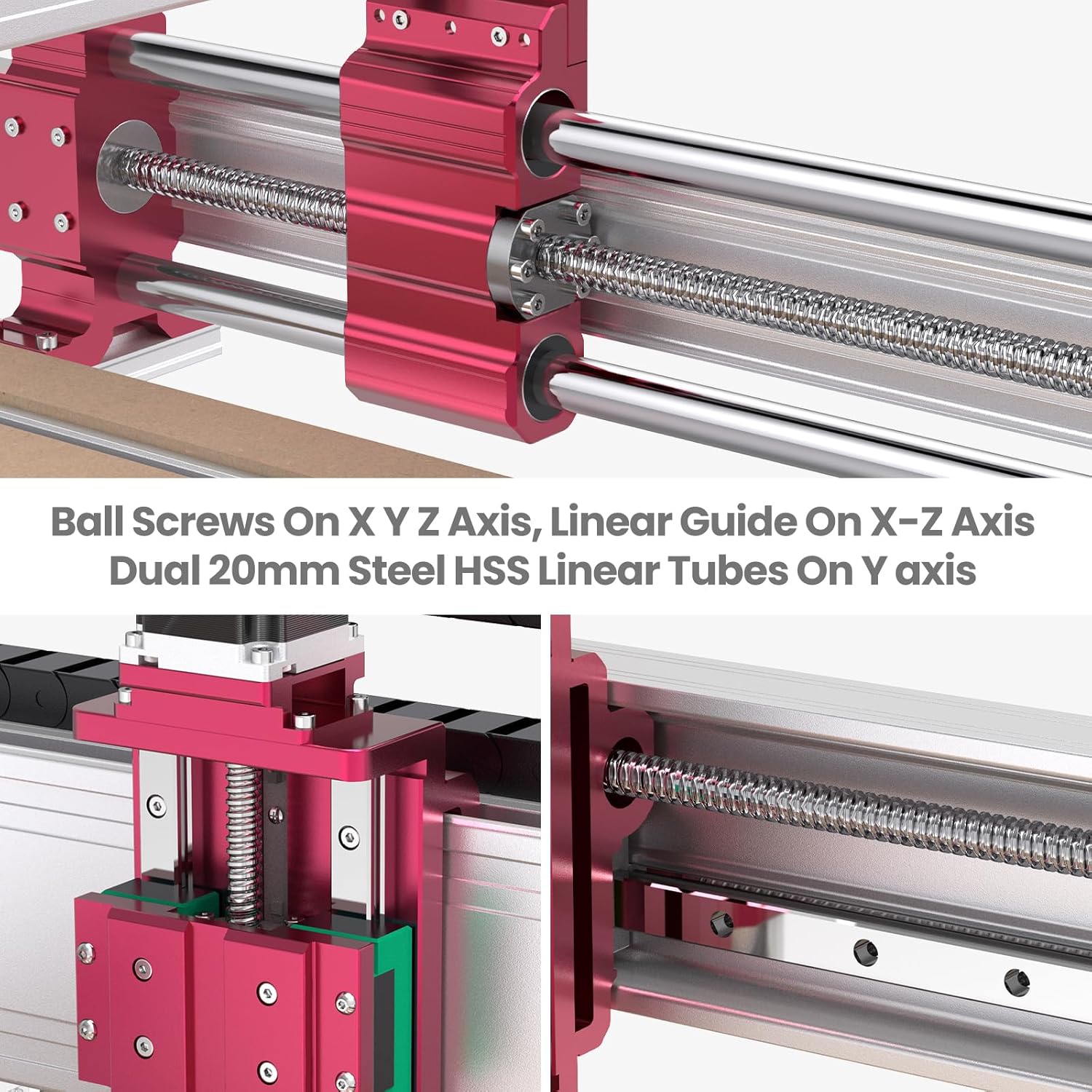

- NBX-5040: We replaced the linear rails on the NBS-6040's Y module with dual 20mm Steel HSS Linear tubes. In our testing, the NBX-5040 gets you most of the performance of NBS-6040

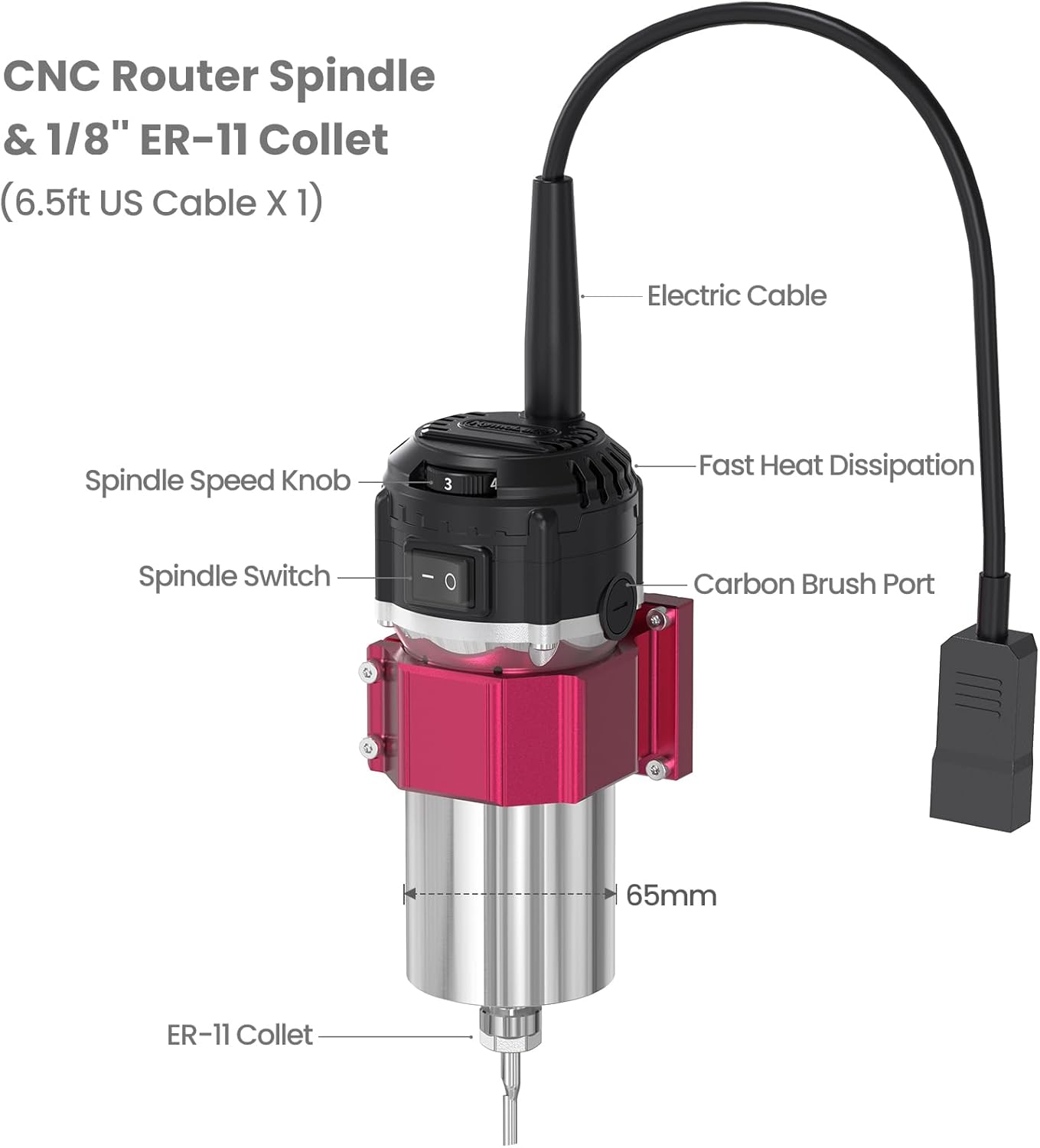

- NymoLabs Custom-made 710W Router: The NBX-5040 features the Self-developed Trim Router as a spindle, a Second-to-none move in the market. Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling, ranging from 7000 to 30000 adjustable

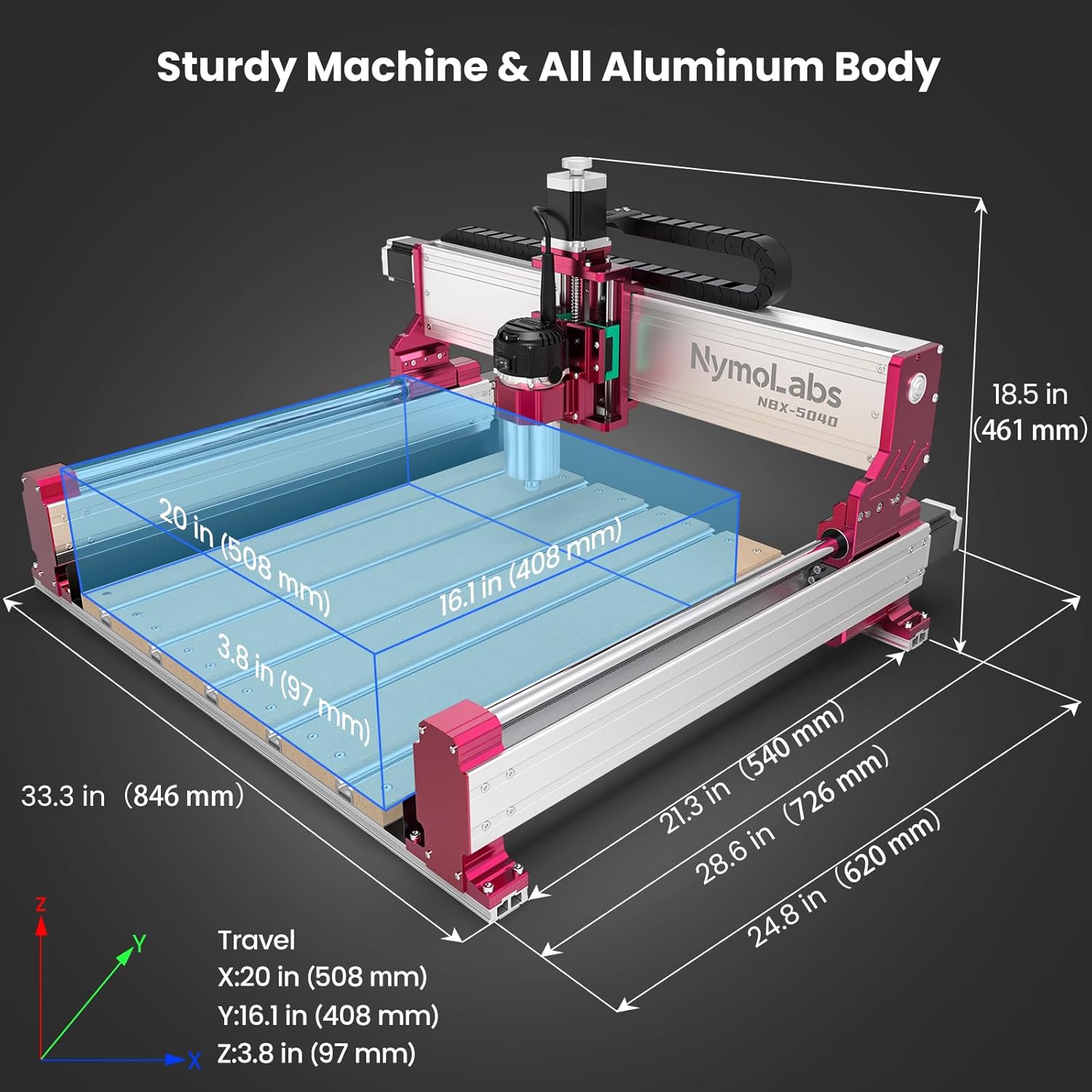

- Modular Design: The pre-assembled modular design makes the 20-minute installation possible, with just a few installation steps and wiring of electronics before starting your projects. Now with a larger working area (20.02" x 16.22" x 3.83")
- Based on Open-source Grbl v1.1: The NBX-5040 CNC router features the driver with 32-bit chips, making the pulse frequency up to 80 KHZ. It also supports transforming the code files from offline controller to local memory to engraving stabler
- Create a New and Friendly Maker Ecology: We reserved a series of expansion function ports when designing, including the fourth-axis expansion (four-axis linkage), MPG, Z probe tool set, air pump port, lighting port, air blowing, and dust boot placement,.etc
- Advanced Stepper Motor Driver DM542: Featuring the DM542, the NymoLabs CNC 5040 has the advantages of smooth motor movements without losing steps, current adjustment capability for precise control, and overheat protection to ensure device safety
- TFT Touchscreen Offline Controller: With a 2.8” touchscreen display, the 5040 offline controller makes controlling your engraving machine simple and convenient. Users can operate 5040 manually, or put it on the Electric Controller Box reserved placement
- Tips: ER11 Collet Gripping Range: 1-8mm, 1/4", 1/8". The ER-11 Router is made for use in CNC machines so we skip all of the bases and jigs that won't be used anyway. The 1/4" collet is Not included in the package
| Voltage | 110 Volts |
|---|---|
| Amperage | 6.36 Amps |
| Base Type | Fixed |
| Brand Name | NYMOLABS |
| Horsepower | 0.94 Horsepower |
| Unit Count | 1.0 Count |
| Item Weight | 43 Kilograms |
| Manufacturer | NYMOLABS |
| Model Number | NBX-5040-AJ |
| Power Source | ac |
| Material Type | Aluminum |
| Item Type Name | CNC ROUTER MACHINE |
| Battery Description | Corded electric |

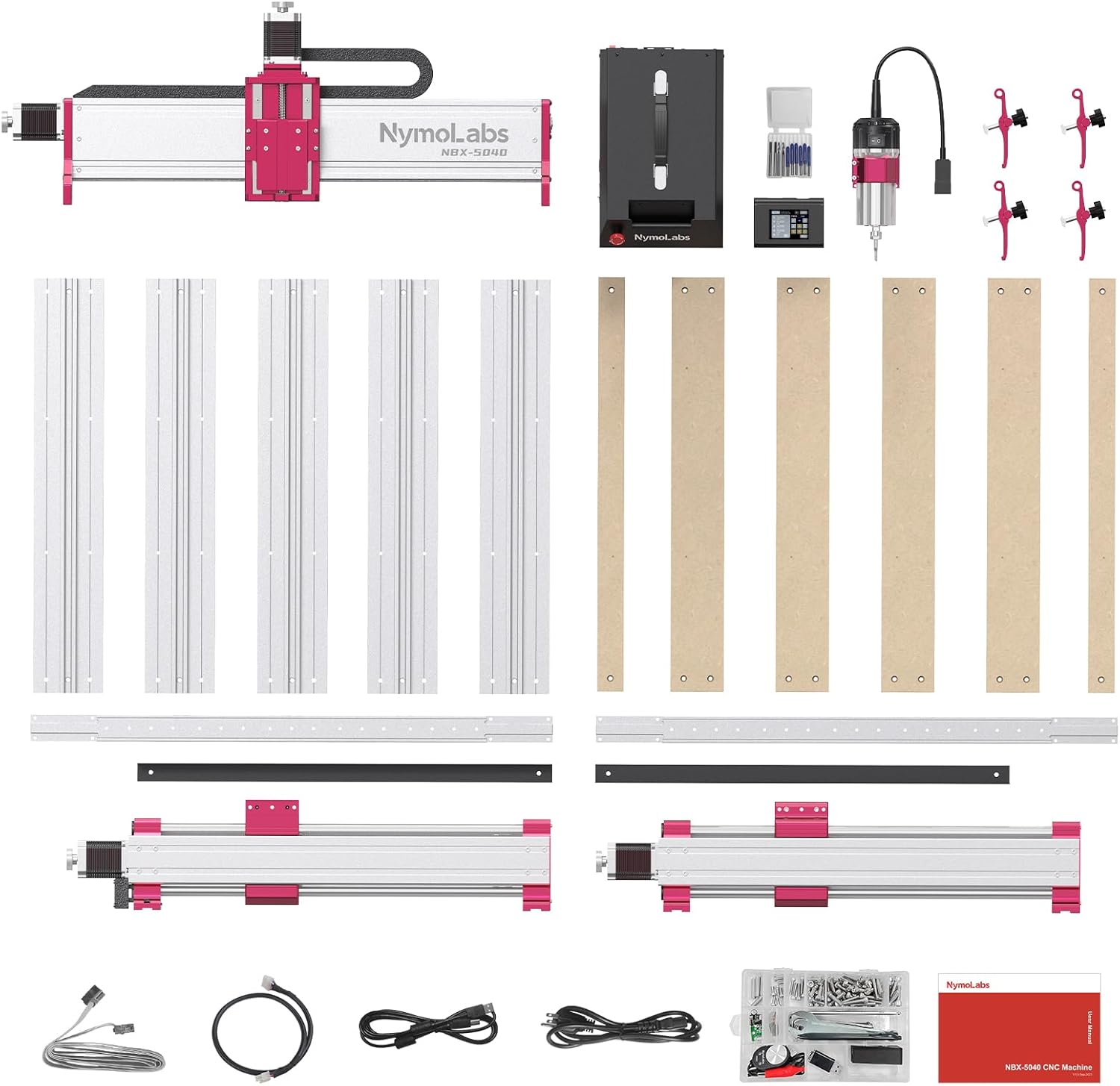

| Included Components | CNC ROUTER MACHINE |
| Item Dimensions W x H | 20"W x 3.82"H |
| Manufacturer Part Number | NBX-5040-AJ |
| Maximum Rotational Speed | 30000 RPM |
