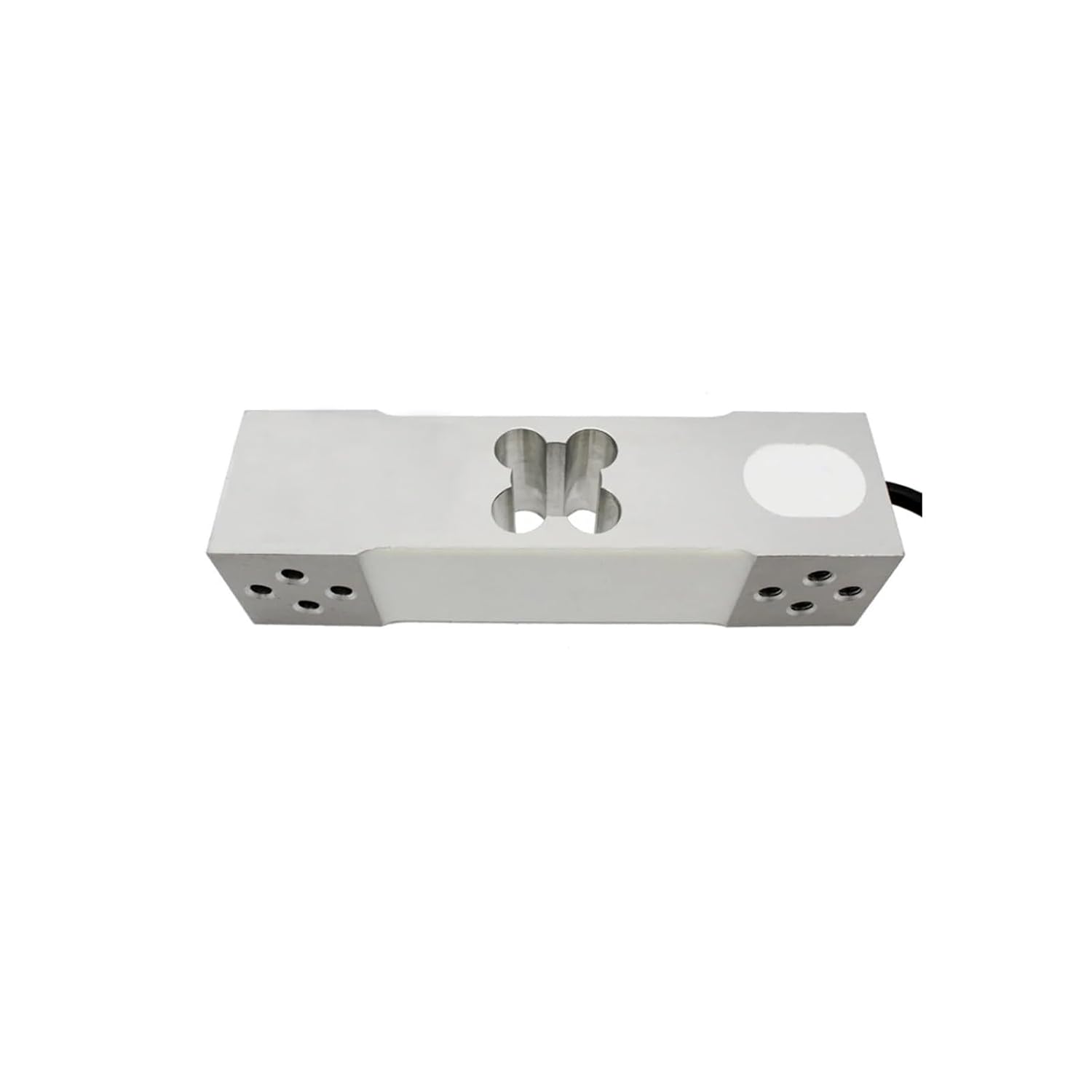

Single Point Load Cell 3kg 5kg 10kg 30kg 50kg 100kg 200kg 300kg 500kg Measuring Range Platform Scale Sensor C3 Accuracy(300KG)
Product details
| Management number | 214335140 | Release Date | 2026/04/12 | List Price | US$53.38 | Model Number | 214335140 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SensorsSingle Point Load Cell 3kg 5kg 10kg 30kg 50kg 100kg 200kg 300kg 500kg Measuring Range Platform Scale Sensor C3 Accuracy==========Capacity : 0~500KGOutput Sensitivity : 2.0±0.05mV/VRelative creep over 30 min : 0.03%F.S.Temp. influence on Outputsensitivity : 0.03%F.S./10Temp. influence on the zero output : 0.03%F.S./10Zero output : ±1%F.S.Temperature range operating : -20~80Impedance : 350Insulation resistance : 5000M/100VDCReference excitation voltage : 5-15VMaximum safe overload : 150%Ultimate overload : 200%
- Sensors
- Single Point Load Cell 3kg 5kg 10kg 30kg 50kg 100kg 200kg 300kg 500kg Measuring Range Platform Scale Sensor C3 Accuracy
| Model | JZXUPTUVI |
|---|---|
| Brand Name | JZXUPTUVI |
| Manufacturer | JZXUPTUVI |
